Description

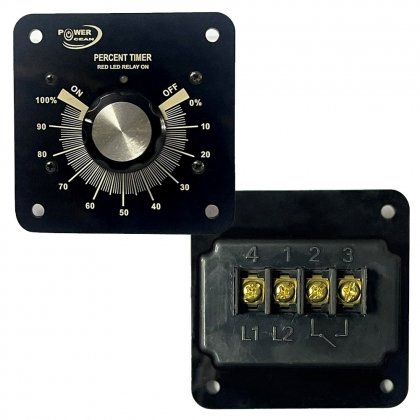

The POT-110-1M Series is a microprocessor-based Percentage Timer that delivers reliable and accurate timing for critical applications where a repeating ON time of a fixed length cycle must be adjustable. These products provide an economical way to deliver precise and reliable repeat cycle timing in for center Pivot Irrigation.

Discription of Function:
Upon initial application of input voltage, the output is energized and time delay (t1) begins. Time Delay (t1) is adjustable as a percentage of the overall cycle time (t2). At the end of time delay (t1), the output is de-energized for the remainder of overall cycle (t2-t1). The sequence then repeats until input voltage is removed. If input voltage is removed and reapplied, the timing cycle will continue from where it left off when the input voltage was removed. A setting of 100% energizes the output continuously while a setting of 0% de-energizes the output continuously.

Features:

• Industry-standard panel cutout dimensions and mounting pattern
• Retains timing sequence in the event of power loss
• Time ranges: 1 Min
• Onboard potentiometer for easy time delay adjustment
• LED indicates relay status
• Terminal block design makes wiring easier from top or bottom
